Unexpected transmission failure in commercial fleets causes catastrophic breakdowns, expensive towing, and severe downtime. Ignoring early warning signs directly impacts your bottom line. Pinpointing the exact point of failure in a heavy-duty assembly remains notoriously difficult for even experienced technicians. Fleet managers and owner-operators often misdiagnose general transmission issues, leading to unnecessary parts replacement. Conversely, failing to replace a compromised component often destroys a brand-new friction disc shortly after installation.
This guide provides a technical framework for isolating internal wear, evaluating the physical evidence of failure, and making cost-effective, long-term replacement decisions for heavy-duty applications. You will learn how to differentiate standard friction wear from mechanical degradation within the housing itself.
Visual and operational diagnostics are required to differentiate a failing clutch cover from standard friction disc wear, fluid contamination, or flywheel degradation.
Clutch slipping, particularly under maximum payload or on steep grades, is the primary operational indicator of a loss of clamp load in the pressure plate.
Replacing only the friction disc while retaining a heat-checked or warped truck clutch cover guarantees premature failure of the new components.
Selecting a replacement requires evaluating OEM versus severe-duty aftermarket options, as well as choosing between manual and self-adjusting mechanisms based on the vehicle's specific torque requirements and maintenance schedules.

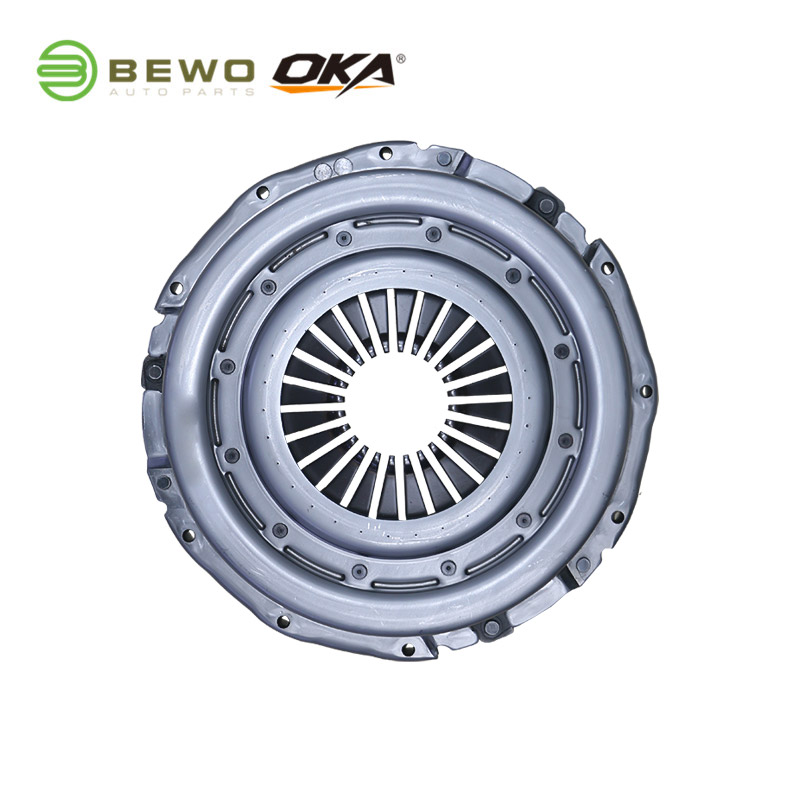

The Clutch Cover serves as the heavy cast housing that bolts directly to the engine flywheel. It contains the diaphragm spring or coil springs, release levers, and the internal pressure ring. This assembly forms the structural backbone of the entire transmission engagement system. Without a structurally sound housing, power transfer from the engine to the driveline becomes impossible. The housing must withstand immense rotational forces while maintaining perfect internal alignment.
The core mechanic of the clutch pressure plate relies on generating a massive, consistent clamp load. This force sandwiches the friction disc against the flywheel. When the driver releases the pedal, the internal springs force the pressure ring forward, locking the disc in place and enabling seamless power transfer from the engine to the transmission input shaft. Any reduction in this clamp load immediately compromises vehicle performance. The springs must apply thousands of pounds of force evenly across the entire surface area of the friction material.
Most heavy-duty applications utilize a pull-type dynamic rather than a push-type setup. In a pull-type system, the release bearing pulls the diaphragm spring fingers away from the flywheel to disengage the drivetrain. This specific mechanical action makes the interaction between the release bearing and the cover's retainer ring a critical point of extreme mechanical stress. Over time, this constant pulling action fatigues the internal components.
System Type | Mechanical Action | Common Heavy-Duty Application | Primary Wear Point |
|---|---|---|---|
Pull-Type | Bearing pulls diaphragm fingers away from flywheel | Class 8 Line-Haul, Vocational Trucks | Retainer ring and release bearing snap ring |
Push-Type | Bearing pushes diaphragm fingers toward flywheel | Medium-Duty, Light Commercial | Diaphragm spring finger tips |
Heavy-duty components fail due to harsh operational realities. Extreme thermal cycling degrades the metallurgical integrity of the cast iron. Constant high-torque loads stretch and warp internal springs. Stop-and-go traffic fatigue wears down the release levers prematurely. Improper driver habits, such as riding the pedal, skipping gears, or resting a foot on the clutch, accelerate wear exponentially. These factors combine to reduce the lifespan of the housing long before the friction material wears out completely.
A weakened diaphragm spring or a warped pressure ring directly reduces the available clamp load. When the clamp load falls below the engine's torque output, you experience clutch slipping. The friction disc loses its grip on the flywheel, causing engine RPMs to spike without a corresponding increase in vehicle speed. This condition generates massive amounts of heat, which further destroys the temper of the internal springs. Once the springs lose their temper, they can never recover their original clamping force.
You will notice this symptom most clearly under specific, high-stress conditions. Accelerating from a dead stop with a full payload exposes a weak clamp load immediately. Climbing steep grades forces the engine to output maximum torque, easily overpowering a degraded pressure ring. Shifting into higher gears where torque demand peaks will also trigger noticeable slipping. If the vehicle struggles to maintain speed on an incline while RPMs surge, the internal springs have likely failed.
Mechanical degradation within the cover assembly alters the feel of the pedal. A stiff, binding, or unusually soft pedal indicates severe internal wear. Worn release levers fail to pivot smoothly. Broken coil springs create uneven resistance. A collapsed pivot ring causes a spongy, unpredictable engagement point. Drivers rely on consistent pedal feedback; any sudden change signals an immediate need for diagnostic inspection. You must verify whether the stiffness originates from the mechanical linkage in the cab or the internal levers of the housing.
Clutch chatter manifests as an erratic, jumping, or shuddering engagement during takeoff. The truck will bounce or shake violently as the pedal is released. This symptom points directly to a warped pressure plate or broken internal cover springs. The uneven surface grabs and releases the friction disc rapidly, sending shockwaves through the entire driveline. Ignoring chatter leads to broken U-joints, damaged transmission mounts, and cracked bell housings.
Specific auditory cues provide early warning signs of mechanical failure. Listen for squealing, chirping, or growling noises when the pedal is depressed. While technicians often link these sounds to a failing release bearing, the root cause frequently involves the cover's diaphragm fingers and retainer ring. Worn fingers grind against the bearing, producing high-pitched squeals that indicate metal-on-metal contact.
Rotational imbalance causes severe driveline vibration. Uneven wear across the pressure ring, missing factory balance weights, or a cracked housing throws the entire assembly out of balance. Because the unit spins at engine RPM, even a slight imbalance translates into violent vibrations felt through the floorboards and shifter. This harmonic distortion easily damages transmission input shafts, pilot bearings, and main shaft bearings if left unresolved.
Modern commercial vehicles frequently utilize self-adjusting mechanisms to maintain proper clearance as the friction material wears. Inspect the mechanical wear indicator tabs found on these units. These tabs move progressively along a stepped ramp or slot as internal wear occurs. Locating and reading this tab provides the fastest initial assessment of the unit's remaining lifespan. You do not need to remove the transmission to check this indicator; simply remove the inspection plate on the bottom of the bell housing.
The position of the indicator provides a definitive visual metric of internal wear. When the tab reaches the "replace" or "end of stroke" position, the cover has reached the end of its usable life. This holds true regardless of operational symptoms. Even if the truck still shifts smoothly, a maxed-out wear indicator means the internal springs lack the travel necessary to maintain clamp load. Replacement is mandatory at this stage.
Heat checking and scoring destroy the friction surface of the pressure plate. Look for deep circular grooves cut into the metal by worn rivets on the friction disc. Identify blue or purple discoloration across the cast iron. This discoloration proves the unit suffered extreme overheating, which permanently destroys the spring temper of the internal diaphragm. Inspect closely for microscopic cracks radiating from the outer edge toward the center; these cracks will eventually cause the casting to shatter under load.
Visual Condition | Physical Evidence | Required Action |
|---|---|---|
Heat Checking | Blue or purple discoloration on cast iron face | Replace assembly immediately. Spring temper is destroyed. |
Deep Scoring | Circular grooves exceeding 0.015 inches in depth | Replace assembly. Surface cannot mate with new disc. |
Micro-Cracking | Hairline fractures radiating from the center | Replace assembly. High risk of catastrophic shattering. |
Warpage prevents the pressure ring from applying even force across the friction disc. You must measure the friction surface using a machinist's straight edge and a feeler gauge set. Lay the straight edge across the diameter of the cast iron face. Attempt to slide a 0.006-inch feeler gauge underneath the straight edge at various points. Repeat this process at multiple angles across the surface. If the gauge slides underneath at any point, the surface is warped beyond acceptable tolerances. A warped surface cannot apply uniform pressure to the friction disc, resulting in immediate chatter and localized overheating.
Inspect the diaphragm spring fingers or release levers for deep grooving. The constant contact with the release bearing wears away the hardened metal on the tips of the fingers. If the grooves exceed acceptable depth limits, the release bearing will hang up or bind during engagement. This grooving also changes the geometry of the release mechanism, leading to incomplete disengagement and hard shifting. You should measure the depth of these grooves with a dial caliper.
Check for uneven finger height across the entire diaphragm spring. Place a straight edge across the tips of the fingers. They should all sit at a uniform height. Uneven fingers indicate internal spring failure, a cracked diaphragm, or a collapsed pivot ring. A unit with uneven fingers will never release the friction disc cleanly, causing the transmission to grind during gear changes.
Inspect the snap ring and retainer ring on pull-type covers for distortion or metal fatigue. The retainer ring secures the release bearing to the diaphragm spring. If this ring stretches, cracks, or loses tension, the release bearing will pull out of the assembly entirely. This results in an immediate, catastrophic loss of clutch control, leaving the truck stranded on the road.
Utilize a diagnostic matrix to rule out isolated friction disc wear or hydraulic linkage binding. Measure the thickness of the friction material and inspect the rivets. If the disc remains within spec but the system slips, the clamp load has failed. Disconnect the mechanical linkage or hydraulic slave cylinder to test for binding. If the linkage moves freely but the pedal remains stiff, the internal release levers are seized.
Identify rear main engine seal or transmission input shaft seal leaks before condemning the assembly. Oil, grease, or fuel contamination on the pressure plate mimics the slipping symptoms of a failed clamp load. The fluid acts as a lubricant, destroying the coefficient of friction. If you find heavy oil residue inside the bell housing, you must fix the leak before installing replacement components, or the new unit will fail immediately.
Manual-adjust covers require regular physical adjustments to maintain the correct free-play in the pedal and the proper gap at the release bearing. Technicians must manually turn an adjusting ring inside the housing at scheduled maintenance intervals. You must physically get under the truck, remove the inspection cover, and use a specialized adjustment tool to rotate the internal ring. Self-adjusting models utilize internal cam mechanisms to automatically compensate for friction material wear, keeping the pedal feel and bearing gap consistent without manual intervention.
Fleet considerations dictate which style works best. Self-adjusting covers reduce maintenance intervals and prevent catastrophic damage caused by neglected manual adjustments. However, they require strict adherence to installation protocols. If a technician fails to install a self-adjusting unit correctly, the internal mechanism will max out prematurely, ruining the part. Manual units offer simpler installation but demand rigorous preventative maintenance schedules to prevent the release bearing from riding constantly against the diaphragm fingers.
Standard OEM replacements provide a predictable lifespan and a baseline warranty backed by the vehicle manufacturer. They guarantee exact fitment and restore factory pedal feel. Premium aftermarket options often engineer out known flaws in the OEM design, offering upgraded materials and higher clamp loads for severe-duty applications. Choosing between them requires analyzing the truck's specific operating environment and historical failure rates.
Evaluate material differences when selecting a truck clutch cover. Premium units utilize nodular iron pressure rings instead of standard cast iron. Nodular iron resists heat checking and cracking under extreme thermal stress. Compare standard diaphragm springs against heavy-duty variants designed for increased clamp load. A stronger spring prevents slipping under heavy payloads but will increase pedal effort slightly. You must balance the need for holding power against driver comfort.
Consider upgrading to a higher clamp load specification when the vehicle's operating parameters change. Moving from a standard heavy duty clutch to a severe-duty or ceramic-button compatible cover becomes necessary if the truck hauls heavier loads than originally intended. Ceramic friction discs require a significantly higher clamp load and a more robust pressure ring to function correctly without destroying the housing. Standard organic discs pair well with standard clamp loads, but aggressive friction materials demand aggressive pressure plates.
Match replacement profiles directly to operational realities. Line-haul trucks operating mostly on highways benefit from standard organic or ceramic-mix setups focused on longevity and smooth engagement. Vocational trucks, dump trucks, and refuse haulers endure high heat and frequent engagement; they require severe-duty covers with maximum heat dissipation. Heavy-haul logging or equipment transport vehicles demand the absolute maximum torque capacity available to move massive payloads from a dead stop on unpaved surfaces.
Never mate a new friction disc with a used housing assembly. The physics of a previously heat-cycled pressure plate guarantee rapid destruction of new friction material. The old pressure ring develops microscopic warpage and a unique wear pattern. When a flat, new friction disc contacts this uneven surface, it creates high spots. These high spots overheat instantly, glazing the friction material and causing immediate slipping. You will ruin a brand-new disc in less than a thousand miles.
Furthermore, the internal springs of the old unit have already lost a percentage of their original tension due to thermal cycling. Installing a new disc restores the original thickness, which forces the weakened springs to operate at a different angle. This mismatch results in a severely compromised clamp load. A partial replacement guarantees a second, highly expensive teardown within a few months. Always replace the entire assembly as a matched set.
Use a strict star-pattern torquing sequence when bolting the new assembly to the flywheel. Never use an impact wrench to run the mounting bolts down. The massive torque of an impact gun will instantly distort the cast iron housing before it even seats against the flywheel.
Install the guide studs into the flywheel to support the massive weight of the unit.
Slide the assembly over the guide studs and thread all mounting bolts in by hand.
Snug the bolts to 20 foot-pounds using a crisscross star pattern to seat the housing evenly.
Increase the torque to 40 foot-pounds, continuing the star pattern.
Pull all bolts to the manufacturer's final specification using a calibrated 1/2-inch drive torque wrench.
Remove the guide studs and install the final mounting bolts to spec.
Uneven tightening permanently warps a brand-new pressure plate out of the box. If you torque one side down fully while the other side remains loose, the cast iron housing bends. This warpage leads to immediate clutch drag, where the transmission refuses to go into gear, or severe release issues. A warped housing cannot be fixed; it must be discarded and replaced entirely.
Post-installation calibration determines the success of the replacement. You must adjust the clutch brake correctly to ensure the transmission goes into first gear or reverse without grinding. Set the critical 1/2-inch gap between the release bearing and the clutch brake. This measurement must be exact. Use a specialized 1/2-inch gauge block to verify the distance. If the gap is too small, the brake will drag constantly. If the gap is too large, the brake will not stop the input shaft.
Calibrate the mechanical linkage or hydraulic system to ensure the new cover engages and disengages fully. Adjust the pedal free-play to the manufacturer's exact specifications. Verify that the release bearing pulls the diaphragm fingers far enough to release the friction disc completely, but not so far that the internal springs bind. Test the engagement point on the pedal to ensure it sits at a comfortable, predictable height for the driver.
Implement strategies for efficient replacement to minimize shop time. Source complete installation kits in advance, including the pilot bearing, release bearing, and clutch brake. Resurface or replace the flywheel concurrently; never install a new assembly against a glazed or heat-checked flywheel. Inspect the transmission input shaft splines for wear or twisting. Utilizing alignment tools specific to heavy-duty splines ensures the transmission slides back into place smoothly without damaging the new friction disc hubs. Clean the bell housing thoroughly to prevent old debris from contaminating the new components.
Take the following actions to protect your fleet and ensure a successful installation:
Consult your vehicle's factory service manual for exact torque specifications and allowable warpage tolerances before beginning any teardown.
Source complete installation kits that include the pilot bearing, release bearing, and clutch brake to prevent mismatched component failures.
Inspect the engine rear main seal and transmission input shaft seal for leaks prior to installing new drivetrain components.
Verify the 1/2-inch gap between the release bearing and the clutch brake using a precision gauge block before returning the truck to service.
A: In the heavy-duty industry, these terms are often used interchangeably to describe the same bolted assembly. Technically, the cover is the outer cast iron housing that bolts to the flywheel, while the pressure plate is the internal machined friction surface that physically contacts the disc. Together, they house the springs and levers required for engagement.
A: Lifespan varies heavily based on application. Line-haul highway trucks can often exceed 500,000 miles on a single unit due to infrequent shifting. Vocational trucks, dump trucks, or city delivery vehicles may require replacement every 150,000 to 250,000 miles. Driver behavior, payload weight, and operating terrain significantly impact the exact lifespan.
A: No. Heavy-duty covers are strictly replace-only items. Resurfacing the internal pressure ring alters the factory calibration, reduces the thickness of the metal, and permanently compromises the clamp load geometry. Unlike flywheels, which are designed to be machined, altering the internal dimensions of the housing guarantees mechanical failure.
A: Sudden slipping usually indicates a catastrophic loss of clamp load. This occurs when an internal diaphragm spring fractures, a pivot ring collapses, or the release linkage binds and prevents full engagement. Sudden slipping can also result from a blown rear main engine seal or transmission seal dumping oil directly onto the friction surfaces.
A: You do not always need to replace it, but you must resurface it. The flywheel must be machined to remove heat checking, glazing, and microscopic warpage. Machining ensures a perfectly flat mating surface for the new pressure plate and maintains the correct step-height required for optimal clamp load. If it is cracked or worn beyond minimum thickness, replace it.
A: While both cause slipping, checking the self-adjusting wear tab provides an immediate clue. If the tab is maxed out, the cover has failed. Otherwise, performing a physical teardown to inspect friction material thickness versus pressure plate clamp load and spring integrity is the only way to definitively isolate the root cause.
