Misdiagnosing clutch and transmission noises often leads to unnecessary transmission removals. This results in wasted labor hours and tied-up shop bays. Identifying the exact source of drivetrain noise requires isolating the release bearing from the pilot bearing and transmission input shaft bearing. All three present overlapping auditory symptoms that confuse even experienced technicians. Modern variations like Concentric Slave Cylinders (CSCs) introduce hydraulic complexities to traditional mechanical diagnostics, making accurate fault isolation more challenging than ever.
You need a systematic, evidence-based diagnostic framework to accurately identify failure, evaluate repair scope, and determine the most effective replacement strategy. We will break down how to isolate these noises using specific pedal-travel tests and visual verification techniques. This allows you to pinpoint the exact point of mechanical breakdown before committing to a labor-intensive transmission drop.
Symptom Isolation: Release bearing noise typically manifests as a squeal, growl, or grinding sound that occurs only when the clutch pedal is depressed.
Diagnostic Precision: Differentiating between the release bearing and pilot bearing requires specific pedal-travel tests to isolate component engagement, alongside ruling out hydraulic system faults.
Repair Economics: Due to the high labor cost of dropping a transmission, replacing the clutch release bearing as a standalone component is rarely cost-effective compared to installing a comprehensive clutch kit.
Risk Mitigation: Successful clutch bearing replacement requires inspecting adjacent hardware, including the guide tube, clutch fork, pivot ball, and hydraulic lines, to prevent premature failure of the new component.

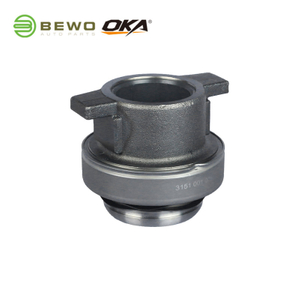

The Release Bearing acts as the mechanical bridge between the stationary clutch linkage and the engine's rotating assembly. When you press the pedal, force transfers to the clutch fork. The fork pushes the bearing forward along the transmission input shaft guide tube. The bearing face contacts the spinning diaphragm spring fingers of the pressure plate. It applies linear thrust force, compressing the spring and lifting the pressure plate away from the friction disc. This severs power transfer from the crankshaft to the input shaft, allowing you to shift gears.
These bearings are typically angular contact ball bearings designed to handle high thrust loads. They contain factory-sealed high-temperature grease and utilize either nylon or steel cages to keep the ball bearings evenly spaced. Because they operate in a high-heat, high-friction environment inside the bellhousing, their structural integrity dictates the entire shifting experience.

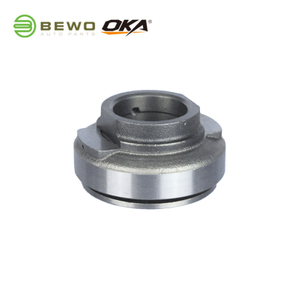

Traditional setups use an external hydraulic slave cylinder or a mechanical cable. These actuate a forged steel fork pivoting on a stationary ball stud. The fork pushes a standard thrust bearing along a quill tube. While this design is robust and keeps hydraulic fluid outside the bellhousing, it involves multiple moving wear points that require periodic inspection.

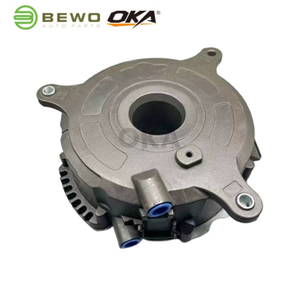

Concentric Slave Cylinders (CSCs) integrate the hydraulic cylinder and the thrust bearing into a single unit bolted directly to the transmission front case. CSCs eliminate the external slave cylinder, clutch fork, and pivot ball entirely. When hydraulic pressure builds from the master cylinder, it expands the internal seals of the CSC, pushing the integrated bearing face into the pressure plate. While CSCs offer a smoother pedal feel, their internal location means any hydraulic seal failure requires a complete transmission removal to fix.
Bearings operating inside a bellhousing endure extreme rotational speeds and severe thermal cycling. These harsh conditions lead to several distinct failure mechanisms that technicians see daily on the shop floor.
Lubrication Degradation: The factory-sealed grease inside the bearing races eventually breaks down from continuous heat cycling. Once the lubrication dissipates, metal-to-metal contact between the ball bearings and the races causes rapid galling. This generates excessive heat and leads to catastrophic cage collapse.
Contamination: The bellhousing environment is inherently dirty. Abrasive friction material dust from the wearing clutch disc easily infiltrates compromised bearing seals. Oil leaks from a failing rear main engine seal or transmission input shaft seal can wash away the internal grease, replacing it with abrasive sludge.
Uneven Wear and Asymmetric Loading: In traditional fork-actuated systems, a bent clutch fork or a heavily worn pivot ball applies uneven pressure to the bearing carrier. This asymmetric thrust load forces the bearing to ride at an angle against the diaphragm spring, destroying the internal races rapidly.
Driver-Induced Wear: Premature failure frequently stems from poor operational habits. Resting a foot on the clutch pedal while driving, or holding the pedal down continuously at extended red lights, keeps the bearing engaged against the spinning pressure plate. This subjects the component to a constant 100% duty cycle, drastically reducing its operational lifespan.
Establishing a baseline of normal operation is the first step in identifying mechanical deviations. A healthy drivetrain exhibits smooth, linear pedal resistance without binding, pulsation, or acoustic anomalies throughout the entire stroke. Hydraulic integrity ensures immediate pressure plate response without spongy feedback. Accurate diagnostics require isolating deviations in pedal feel, acoustic feedback, and fluid retention. This allows you to map specific symptoms to the exact failing component within the bellhousing before you pick up a wrench.
Acoustic profiling is the most direct method for identifying a failing thrust bearing. Because the bearing only experiences load when engaging the pressure plate, acoustic anomalies follow a strict operational pattern. The specific sounds of failure range from a high-pitched squealing or chirping during early-stage lubrication loss, to a harsh, guttural growl or grinding noise as the internal ball bearings begin to disintegrate.
These trigger conditions are highly specific. The noise scales in pitch and volume with engine RPM, but its presence depends entirely on the physical pressure applied to the clutch pedal. If the bellhousing is silent when the pedal is fully released but begins to emit a grinding squeal the moment you depress the pedal, the thrust bearing is the primary suspect. A dry bearing seal often produces a light chirp, while spalled internal races produce a heavy, vibrating growl that you can feel through the floorboards.
When a bearing begins to fail structurally, it loses its ability to apply uniform pressure to the diaphragm spring. This leads directly to severe clutch disengagement problems. You will frequently notice severe pedal feel anomalies. A pulsating clutch pedal often indicates that the bearing face has worn unevenly or that the pressure plate fingers are damaged. Excessive stiffness or a notchy feeling during pedal travel points to the bearing binding on a grooved transmission guide tube. In severe cases of structural collapse, the pedal drops to the floor with zero resistance.
These mechanical bindings create immediate shifting interference. If the bearing cannot fully compress the diaphragm spring, the pressure plate fails to release its clamping force on the friction disc. The engine continues to transmit rotational torque to the transmission input shaft. This makes it physically impossible for the synchronizers to align. You get aggressive gear clash, exceptionally hard shifting, or a complete inability to engage first gear or reverse from a stationary position.
In modern vehicles equipped with Concentric Slave Cylinders, bearing failure is often accompanied by hydraulic fluid leaks. When the internal seals of a CSC blow out due to heat or debris, hydraulic brake fluid leaks directly into the bellhousing. This fluid typically drains out of the bellhousing weep hole at the bottom of the casing. This loss of hydraulic pressure directly causes disengagement failure, as the pedal stroke no longer translates into linear bearing movement.
The pedal travel test is the definitive diagnostic procedure for isolating bellhousing noises. By manipulating the engagement stages of the drivetrain, you can pinpoint exactly which bearing is failing based on when the noise occurs. Follow these steps carefully in a quiet shop environment.
Ensure the vehicle is parked safely on level ground with the parking brake fully engaged. Chock the wheels for safety.
Start the engine and leave the transmission in neutral with the clutch fully engaged (pedal completely released). Listen to the baseline sound of the idling engine.
Slowly depress the clutch pedal to apply light pressure, just enough to take up the mechanical free play and bring the bearing face into contact with the spinning pressure plate fingers.
Continue pushing the pedal fully to the floor, observing any changes in acoustic pitch, volume, or pedal vibration.
Interpreting the results provides clear diagnostic direction. If the drivetrain is quiet while idling in neutral, but a distinct squeal or grinding noise begins upon light pedal pressure and peaks in intensity at full depression, the clutch release bearing is the definitive point of failure. The noise occurs because the bearing is now under thrust load and its internal components are grinding against each other.
Misdiagnosing a pilot bearing as a thrust bearing is a common error that leads to confusion during repairs. The pilot bearing (or bushing) resides in the center of the engine crankshaft flange and supports the very tip of the transmission input shaft. This bearing only rotates when the clutch is fully disengaged (pedal to the floor) and the engine crankshaft is spinning at a different speed than the stationary transmission input shaft.
The diagnostic rule for pilot bearing isolation relies on this speed differential. If the noise is most prominent when the clutch pedal is fully depressed and the vehicle is in gear while stationary, the pilot bearing is the likely culprit. In this scenario, the engine is turning, but the input shaft is locked in place by the stationary wheels. The extreme difference in rotational speed forces the failing pilot bearing to squeal. If the noise disappears when you shift back into neutral and release the pedal, you have confirmed the pilot bearing is at fault.
The transmission input shaft bearing sits inside the front case of the transmission, supporting the main shaft. Unlike the components in the bellhousing, this bearing spins whenever the clutch is engaged (pedal up) and the engine is running, regardless of whether the vehicle is in gear or in neutral.
To apply the diagnostic rule for the input shaft bearing, listen to the vehicle while it idles in neutral with the pedal fully released. If a low growl or whirring noise is present in this state, but completely disappears the moment the clutch pedal is fully depressed to the floor, the issue resides inside the transmission case. Depressing the pedal stops the input shaft from spinning, thereby silencing the failing input shaft bearing. This confirms the issue is not related to the thrust bearing.
Before condemning any mechanical bearing for severe disengagement issues, a thorough differential diagnosis of the hydraulic system is mandatory. A failing master cylinder can mimic the exact symptoms of a collapsed thrust bearing. If the internal seals of the master cylinder bypass fluid, the system cannot generate the hydraulic pressure required to push the slave cylinder or CSC.
Verify the master cylinder is functioning correctly by checking the fluid reservoir level and inspecting the firewall for leaks. A spongy pedal, inconsistent engagement points, or incomplete disengagement can often be cured simply by bleeding trapped air from the hydraulic lines. Do not authorize a massive teardown until you have verified the hydraulic system holds pressure.
Modern diagnostic approaches utilize visual verification to confirm mechanical failure before authorizing heavy labor. Using a flexible, high-definition borescope, you can inspect the internal bellhousing environment without dropping the transmission. Route the borescope camera through the flexible rubber clutch fork boot or the designated bellhousing inspection port.
Visually check the interior casing for excessive metal shavings, which indicate catastrophic bearing cage collapse. Inspect the guide tube for severe galling, and check the bottom of the bellhousing for pooled hydraulic fluid, which confirms a blown Concentric Slave Cylinder. Look at the pressure plate diaphragm fingers; if they are heavily grooved or broken off, the bearing has seized and machined them down. This visual evidence provides absolute certainty before committing to a comprehensive teardown.
Diagnostic Matrix: Isolating Drivetrain Bearing Noise | |||
Bearing Type | Pedal Position | Transmission Status | Acoustic Trigger Condition |
|---|---|---|---|
Release Bearing | Depressed (Light to Full) | Neutral or In Gear | Noise begins upon pedal contact and peaks under full compression. |
Pilot Bearing | Fully Depressed | In Gear (Stationary) | Noise peaks when engine speed and input shaft speed differ drastically. |
Input Shaft Bearing | Fully Released (Pedal Up) | Neutral | Noise is present at idle but disappears completely when pedal is depressed. |
When diagnostics confirm a bearing failure, you must decide between a standalone component repair and a comprehensive system overhaul. Standalone replacement means swapping only the failed bearing while leaving the old friction disc and pressure plate in place. This is rarely advisable. The only scenario where component-level replacement makes logical sense is in the event of an immediate, premature failure of a newly installed bearing due to a verifiable manufacturer defect, where the surrounding friction components have zero measurable wear.
The standard industry practice dictates comprehensive replacement. The economic logic of replacing the friction disc, pressure plate, and pilot bearing simultaneously is undeniable. The labor hours required to safely support the engine, disconnect the driveshafts, remove the exhaust, and physically drop a heavy transmission dictate the repair strategy. Because the static labor time for transmission removal vastly outweighs the material cost of the internal components, installing a complete clutch kit ensures that you do not have to pay for the exact same labor a few months later when the aging friction disc inevitably wears out.
Selecting the correct replacement components directly impacts the longevity of the repair. Original Equipment Manufacturer (OEM) specifications provide a guaranteed baseline for reliability. OEM bearings are engineered with exact-fit tolerances tailored to the specific vehicle platform, utilizing factory-approved high-temperature lubrication standards designed to survive standard duty cycles.
However, heavy-duty applications often require aftermarket upgrades. Vehicles utilized for aggressive performance driving, heavy commercial towing, or off-road applications benefit significantly from upgraded components. Heavy-duty aftermarket bearings often feature fully enclosed metal cages, high-temperature molybdenum disulfide grease variants, or billet aluminum CSC bodies that resist the thermal expansion and seal blowout common in plastic factory cylinders.
When executing a clutch bearing replacement, scalability and compliance are critical. Ensure the chosen bearing face profile perfectly matches the specific pressure plate diaphragm design. Some pressure plates use flat fingers, while others use raised fingers. Mixing a flat bearing face with a flat diaphragm spring will cause immediate binding and disengagement failure post-installation.
Visual Inspection Checklist During Teardown | ||
Component | What to Look For | Indication of Failure |
|---|---|---|
Guide Tube (Snout) | Deep grooves, galling, or stepped wear patterns. | Causes the new bearing to bind, resulting in a stiff pedal. |
Clutch Fork | Stress cracks, bent prongs, or worn contact pads. | Applies asymmetric load, destroying the new bearing rapidly. |
Pivot Ball | Flat spots, severe galling, or stripped threads. | Alters fork geometry, leading to uneven bearing engagement. |
Diaphragm Fingers | Deep machining marks, uneven heights, or broken tips. | Indicates the previous bearing seized and ground into the spring. |
A successful repair extends beyond simply bolting in a new bearing; the surrounding operational environment must be flawless. Guide tube (or snout) wear is a frequently overlooked secondary failure. The transmission front bearing retainer features a tubular snout that the bearing slides across. Over time, a failing bearing can carve deep grooves into this metal tube. If a new bearing is installed over a grooved guide tube, it will fail to slide smoothly. This causes immediate pedal stiffness, binding, and rapid wear of the new component. If the tube is damaged, it must be sleeved or replaced entirely.
Similarly, the clutch fork and pivot ball require meticulous inspection. You must clean and examine these components for galling, metal fatigue, stress fractures, or bending. A worn pivot ball alters the geometry of the clutch fork, causing the new bearing to engage the pressure plate at an uneven angle. This asymmetric loading will destroy a brand-new bearing in a fraction of its expected lifespan. Always apply a small dab of high-pressure grease to the pivot ball contact point during reassembly.
Improper lubrication during assembly is a primary cause of premature failure in traditional mechanical setups. There is a delicate balance required when greasing the bearing inner diameter and the input shaft splines. Over-greasing introduces a severe risk. As the assembly spins at high RPMs, excess grease slings outward, contaminating the clutch friction disc and causing immediate clutch slip and glazing. Conversely, under-greasing causes the bearing to bind on the guide tube, resulting in a heavy, notchy pedal feel. You must apply a very light, uniform coat of high-temperature urea or lithium-based grease specifically designed for clutch splines.
Hydraulic bleeding presents another significant installation risk, particularly for CSC systems. A new Concentric Slave Cylinder must be bled perfectly to ensure full clutch disengagement. Trapped air in the CSC prevents the bearing from achieving its full linear stroke. Many modern hydraulic systems feature complex routing that traps air bubbles. Pumping the pedal rapidly can actually blow out the seals on a brand new CSC. Instead, use specialized vacuum bleeding equipment to pull fluid through the system smoothly.
Finally, adhering strictly to factory torque specifications is non-negotiable. When bolting the new pressure plate to the flywheel, you must follow the manufacturer's specific star-pattern tightening sequence and torque values. Uneven torque application warps the pressure plate housing, causing the diaphragm fingers to sit at varying heights. When the new bearing contacts these uneven fingers, it experiences rapid pulsation and immediate structural damage.
Execute the pedal travel test and verify hydraulic system integrity as your mandatory first steps to prevent costly misdiagnoses between drivetrain bearings.
Invest in a complete, high-quality clutch kit rather than performing a standalone bearing replacement to maximize the return on heavy labor investments.
Inspect the guide tube, clutch fork, and pivot ball for wear during disassembly to ensure the new bearing operates on a flawless mechanical foundation.
Source an OEM-equivalent or heavy-duty upgraded clutch kit, and secure the necessary transmission jacks, clutch alignment tools, and vacuum bleeders before initiating the teardown.
A: While technically possible in the short term, driving with a failing bearing risks catastrophic mechanical failure. Continued operation can cause the bearing to seize, rapidly grinding away the pressure plate diaphragm fingers and causing a sudden loss of clutch disengagement.
A: The primary expense stems from the extensive labor hours required to remove the transmission, rather than the material cost of the component. Front-wheel-drive, all-wheel-drive, and heavy commercial layouts demand significantly more labor time than standard rear-wheel-drive configurations.
A: It typically produces a distinct high-pitched squealing, chirping, or harsh grinding sound. The defining characteristic is that this noise occurs specifically when the clutch pedal is depressed and the bearing is placed under mechanical load.
A: Yes. If the bearing loses internal lubrication and overheats, it can bind on the transmission guide tube. Internal bearing cage collapse or a failing Concentric Slave Cylinder can also significantly increase pedal effort, causing a heavy feel.
A: We strongly recommend replacing the pilot bearing, along with the clutch friction disc and pressure plate. Because the transmission is already removed to access the bellhousing, the labor overlaps entirely, making comprehensive replacement the most reliable strategy.
A: A quality bearing typically lasts between 50,000 to 100,000 miles under normal driving conditions. However, driver habits heavily influence this lifespan. Practices such as resting a foot on the pedal subject the bearing to constant load, severely reducing its operational life.
