Premature transmission failure and driveline damage in heavy-duty fleets directly correlate to improper clutch specification. This mismatch leads to catastrophic downtime and inflated maintenance schedules. Fleet managers and owner-operators struggle to balance required torque capacity and heat dissipation with driver comfort. This often results in either under-specced slipping clutches or over-specced, aggressive setups that damage downstream components. Selecting the wrong friction material or disc diameter guarantees poor engagement and rapid wear. This guide provides a technical framework for evaluating and selecting the correct heavy-duty friction disc. We focus on torque ratings, friction materials, dimensional standards, and application-specific configurations. You will learn how to match the friction disc to your engine output, transmission type, and daily operating conditions to maximize powertrain reliability.
Torque Buffering: Always calculate peak engine torque and add a 10–15% safety margin before selecting a clutch rating to prevent slippage under maximum Gross Combined Weight Rating (GCWR).
Material Dictates Application: Organic materials suit standard line-haul operations, while ceramic and metallic compounds are mandatory for high-heat, vocational, and heavy-haul environments.
Dimensional Upgrades: Moving to a larger diameter (e.g., a 430mm clutch plate) increases thermal mass and surface area, drastically improving heat dissipation compared to standard sizes.
System Compatibility: A high-torque clutch plate is only as effective as its mating components; flywheel condition, dampening springs, and release mechanisms must align with the chosen disc.
Selecting a replacement starts with raw numbers. You must identify the engine's peak torque output at the flywheel. Do not use horsepower for this calculation. Horsepower dictates top speed, while torque dictates pulling power. You can find the peak torque rating on the engine data plate, usually riveted to the valve cover, or by pulling the parameters through the manufacturer's diagnostic software. Modern diesel engines, like the Cummins X15 or Detroit DD15, generate massive low-end torque that peaks very early in the RPM band.
Once you identify the peak torque, apply the industry-standard 10–15% over-torque rule. This safety margin accounts for shock loads, driveline spikes during aggressive shifts, and aftermarket ECM performance tuning. If your diesel engine produces 1,850 lb-ft of torque, you need an assembly rated for at least 2,050 lb-ft. Failing to add this buffer guarantees premature slippage when the truck pulls a heavy grade. The friction material will simply lose its grip against the flywheel when the engine reaches peak boost.
Evaluate the impact of rear axle ratios and tire sizes on mechanical strain. Numerically low axle ratios, such as 2.64 or 3.08, are designed for highway fuel economy. However, they place immense strain on the driveline during startup. The engine has less mechanical leverage to get the mass moving, which requires a higher clamping force from the pressure plate. Conversely, numerically high ratios like 4.11 or 4.33 provide excellent mechanical leverage. This slightly reduces the initial stress transferred to the friction disc during a dead stop, though it limits top highway speed.
You must differentiate between line-haul and vocational applications. Line-haul trucks operate in a steady state on paved highways. They experience low shifting frequency and benefit from consistent cooling airflow across the bell housing. Because the driver spends most of the day in top gear, the friction material rarely engages or disengages. These vehicles can utilize standard materials and single-plate designs without issue, maximizing driver comfort and minimizing pedal effort.
Vocational applications include dump trucks, logging rigs, concrete mixers, and refuse vehicles. These trucks endure high start-stop frequencies and generate massive heat inside the bell housing. They operate in dirt, mud, sand, and steep off-road grades. A logging truck pulling out of a muddy cut block puts exponentially more strain on the driveline than a freight truck on an interstate. This environment demands specialized friction materials, higher clamping loads, and robust dampening springs to survive the abuse.
Define the maximum Gross Combined Weight Rating (GCWR) the vehicle will pull. Heavier loads require higher clamping force and aggressive friction coefficients. Pulling 80,000 pounds on flat highways is vastly different from pulling 140,000 pounds over mountain passes. The physical weight directly dictates the required thermal capacity of the assembly. If you spec a standard disc for a heavy-haul application, the material will overheat, glaze over, and fail within the first few thousand miles.
Driver behavior significantly impacts component lifespan. Factor in how the vehicle is actually operated daily. Frequent slipping in heavy traffic generates excessive heat. When a driver rides the pedal to hold the truck on a hill instead of using the brakes, the friction material acts as a brake pad against the spinning flywheel. This heat degrades standard friction materials rapidly, leading to a complete loss of clamping force.
Aggressive shifting, skipping gears improperly, or dumping the pedal demands higher thermal capacity materials. This remains true regardless of the vehicle's GCWR. A poorly trained driver can destroy a standard disc in a matter of weeks through sheer heat generation. Upgrading the friction material provides a mechanical safeguard against poor driving habits. While you cannot fix bad driving with parts alone, a heavy-duty compound will withstand the thermal shock much better than standard organic facings.
Organic materials consist of woven fiberglass, brass or copper wire, and specialized binding resins. This compound delivers smooth engagement and protects driveline components from shock. It offers the softest pedal feel, maximizing driver comfort during long shifts. When a driver releases the pedal, the organic material slips just enough to provide a seamless transition of power to the input shaft. Organic discs also carry the lowest upfront purchase price, making them a standard choice for factory installations.
However, organic materials have strict thermal limits. They are highly prone to glazing and rapid wear under extreme heat. If a driver slips an organic disc excessively, the internal temperatures spike. The binding resins melt and crystallize on the surface. This creates a hard, slick, glass-like finish that loses all holding power. Once an organic disc glazes, it cannot be repaired; it must be replaced. Reserve organic materials strictly for standard highway use and lighter loads where heat generation is minimal.
Ceramic and metallic compounds provide exceptional heat tolerance. Manufacturers create these pads using sintered iron, copper, bronze, and graphite. They maintain a high friction coefficient even at extreme temperatures that would instantly destroy an organic disc. Manufacturers often utilize these materials in puck-style disc designs rather than full-face circles. This configuration increases clamping pressure per square inch by concentrating the load on smaller, specific points against the flywheel.
The primary trade-off is drivability. Ceramic materials deliver an aggressive, "grabby" engagement. They do not like to slip. When the driver releases the pedal, the ceramic material bites into the flywheel instantly. This harsh engagement can cause severe driver fatigue in stop-and-go traffic. If misapplied in a standard line-haul truck, ceramic discs accelerate wear on the flywheel surface and the transmission input shaft splines. Use these materials only when high torque, heavy loads, and high heat demand them.
Kevlar bridges the gap between organic and ceramic options. It utilizes aramid fibers to offer significantly higher heat capacity than organic compounds. At the same time, it provides smoother engagement and better drivability than aggressive ceramic pads. Kevlar resists glazing and can actually recover from severe overheating events. If a driver accidentally overheats a Kevlar disc, normal driving will eventually wear away the damaged top layer, restoring the material's holding power.
The main drawback is the installation and break-in process. Kevlar requires a strict, prolonged break-in period to function correctly. Drivers must operate the vehicle gently for the first 500 to 1,000 miles. They must avoid heavy loads, steep grades, and aggressive shifting. Failing to break in the material properly prevents it from mating with the flywheel surface, leading to immediate and permanent slippage. You must educate your drivers before handing over the keys to a truck with a fresh Kevlar installation.
Material Type | Heat Resistance | Engagement Feel | Ideal Application | Glazing Risk |
|---|---|---|---|---|
Organic | Low to Medium | Very Smooth | Standard Line-Haul, Highway | High |
Ceramic / Metallic | Extremely High | Aggressive / Grabby | Heavy-Haul, Logging, Mining | Low |
Kevlar / Aramid | High | Smooth to Moderate | Mixed Vocational, Heavy Freight | Medium (if not broken in) |
Physical size dictates thermal capacity. The larger the disc, the more material is available to absorb and dissipate heat. Standard 350mm single-plate setups are common in lighter or medium-duty applications, such as box trucks or local delivery vehicles. They lack the physical mass to absorb the heat generated by modern high-torque Class 8 diesel engines. Upgrading the diameter is the most effective mechanical way to increase durability without changing the friction material itself.
Analyze the performance differences between standard heavy-duty sizes. A 400mm clutch plate offers a significant step up from medium-duty sizes. It provides adequate surface area for standard heavy-duty highway operations. It fits easily into most standard bell housings and provides a reliable lifespan for trucks pulling legal 80,000-pound loads on flat terrain. However, for severe duty or mountainous terrain, you must look larger to prevent thermal overload.

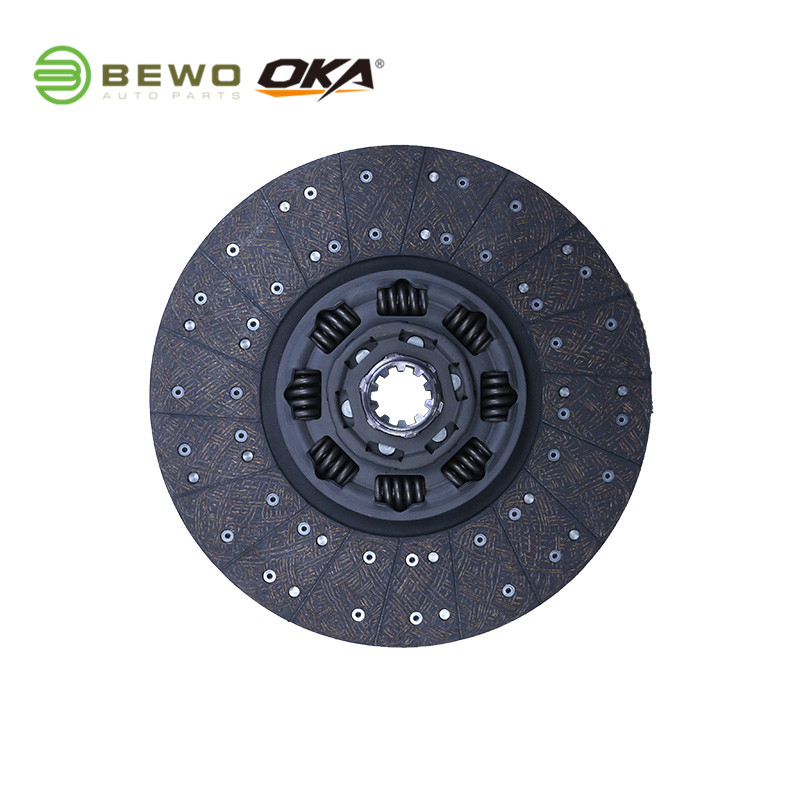

Moving to a heavy-duty 430mm clutch plate exponentially improves heat dissipation. The increased diameter provides more surface area for the friction material to contact the flywheel. It also increases the torque holding capability through sheer mechanical leverage. Because the friction material sits further from the center hub, it holds more torque without requiring a stiffer pressure plate spring. This keeps pedal effort manageable for the driver while maximizing the load capacity of the driveline.
Single plate configurations are ideal for standard freight and lower torque requirements. The benefits include lower overall weight, simpler installation, and fewer moving parts. Single discs also reduce the initial purchase cost and require less labor to install. They are perfectly adequate for engines producing under 1,650 lb-ft of torque in standard highway applications. The single disc setup allows for excellent airflow inside the bell housing, keeping the assembly cool during normal operation.
Multi-plate, or twin disc, configurations are mandatory for extreme high-torque engines. Heavy-haul applications pulling over 100,000 pounds require this setup. A twin disc system utilizes two separate friction discs separated by a steel intermediate plate. This design doubles the friction surface area. It handles massive torque loads while maintaining a standard pedal effort. The intermediate plate between the two discs acts as an additional heat sink, absorbing thermal spikes during heavy pulls. When installing a twin disc system, you must ensure the drive pins in the flywheel are perfectly smooth, or the intermediate plate will bind and cause release issues.
Modern diesel engines generate severe torsional vibrations. Every time a cylinder fires, it sends a violent power pulse down the crankshaft. These pulses create a twisting force that travels directly into the transmission. Sprung hubs on the friction disc absorb these diesel engine power pulses. They act as mechanical shock absorbers, protecting the transmission input shaft from shearing under load. Without a sprung hub, the raw vibration would shatter the transmission gears and destroy the input shaft bearings.
Engineers design pre-damper mechanisms specifically for low-RPM, high-torque modern engines. These multi-stage spring systems feature inner and outer coils housed within the center hub. The softer inner springs absorb idle vibrations and eliminate gear rollover noise when the truck is sitting in neutral. The stiffer outer springs engage under heavy acceleration to handle peak torque loads. A robust dampening system is critical for transmission longevity. When inspecting a used disc, loose or broken hub springs indicate severe driveline shock or lugging the engine at low RPMs.
The physical shape of the friction material changes how the system applies force to the flywheel. Full-face designs maximize the total contact area for heat transfer. The friction material forms a complete, unbroken circle around the hub. This is the standard configuration for organic and Kevlar materials. The continuous circle of material provides smooth, predictable engagement. It distributes the clamping force evenly across the entire surface of the flywheel, minimizing localized hot spots.
Puck-style, or button, designs operate differently. They concentrate the clamping force on smaller, isolated areas. A typical ceramic truck clutch disc features 4, 6, or 8 individual pucks riveted to the steel backing plate. This concentrated pressure drastically increases the Pounds per Square Inch (PSI) of clamping force. This prevents slipping in extreme torque applications. However, the reduced surface area means the flywheel must absorb more localized heat. You will often see distinct heat rings on a flywheel that has run a puck-style disc.
A new friction disc will fail prematurely if installed against damaged components. You must mandate flywheel resurfacing or replacement during every installation. A warped or hot-spotted flywheel prevents the new disc from seating properly. The surface finish (measured in Ra) must match the friction material manufacturer's specifications. If the flywheel is machined too smooth, the disc will slip. If it is machined too rough, it will chew through the new friction material rapidly. Always measure the flywheel thickness after machining to ensure it remains within the OEM discard limits.
You must also replace the supporting hardware during the job. Mandate the replacement of the pilot bearing, release bearing, and clutch brake. A seized pilot bearing will drag on the transmission input shaft, making it impossible to shift gears smoothly. A worn release bearing will cause uneven pressure plate engagement and heavy pedal effort. Inspect the cross-shaft bushings in the bell housing for wear. Replacing these inexpensive components while the transmission is already out prevents massive labor costs and roadside breakdowns later.
More clamping force is not always better. You must address the drivability penalty of over-specification. Installing a rigid, ceramic multi-plate system in a standard line-haul truck is a mechanical mistake. It drastically increases driver fatigue due to the heavy pedal and harsh engagement. Drivers will complain about left knee pain and difficulty backing into tight loading docks. The aggressive bite of the ceramic material makes precise, low-speed maneuvering incredibly difficult.
Furthermore, an over-specced system transfers stress downstream. The friction disc is designed to be the mechanical fuse in the driveline. If the disc refuses to slip under severe shock loads, the kinetic energy must go somewhere. This risks breaking U-joints, twisting aluminum driveshafts, or snapping axle shafts. You must balance the friction material against the weakest link in your driveline. A properly specified heavy duty clutch plate protects the transmission and axles by absorbing the shock, rather than transferring it.
Pull your engine data plate information to determine the exact peak torque output, then multiply that number by 1.15 to establish your baseline torque requirement.
Measure your flywheel housing and input shaft splines to confirm maximum allowable diameter, upgrading to a 430mm setup if the bell housing permits.
Select your friction material based strictly on your route data; mandate organic for flat highway runs and ceramic for off-road or heavy-haul routes.
Source all replacement components, including the pilot bearing and release bearing, from certified heavy-duty driveline manufacturers to ensure dimensional accuracy.
A: Locate the engine's peak torque output on the manufacturer data plate or through the ECM. Multiply that peak torque number by 1.15 to add a 15% safety margin. If your engine produces 1,650 lb-ft of torque, you need an assembly rated for at least 1,897 lb-ft to prevent slippage under heavy loads.
A: The 430mm version offers a larger physical diameter, which significantly increases the friction surface area and thermal mass. This larger size dissipates heat much faster and holds higher torque loads without requiring excessively stiff pressure plate springs. It is the standard upgrade for severe-duty applications.
A: Stop-and-go traffic, steep mountain grades, and aggressive shifting generate massive heat inside the bell housing. If a truck operates in these conditions, standard organic materials will glaze and fail. You must upgrade to ceramic or Kevlar materials to handle the elevated temperatures caused by frequent pedal use.
A: You can, but it is highly discouraged. Ceramic materials have a very aggressive, grabby engagement. Using them for standard line-haul highway driving increases driver fatigue and causes unnecessary shock loads to the transmission, U-joints, and axles. Stick to organic materials for standard highway use.
A: Slipping occurs when the torque load exceeds the clamping force or friction coefficient of the disc. This is usually caused by worn friction material, a weak pressure plate spring, a glazed surface from overheating, or an improperly adjusted linkage preventing full engagement against the flywheel.
A: Upgrade to a multi-plate (twin disc) configuration when engine torque exceeds 1,650 lb-ft, or when pulling loads exceeding 80,000 pounds GCWR. Multi-plate systems double the friction surface area, allowing them to handle massive torque without requiring an impossibly heavy pedal effort from the driver.
