Commercial fleets lose thousands of dollars daily when a transmission goes down. Drivetrain reliability starts right at the engine-to-transmission engagement point. Underspecifying or mismatching clutch components introduces severe risks to your entire operation. Selecting a unit based solely on baseline specifications—without accounting for actual payload, torque output, or vocational application—leads directly to premature wear. You will experience clutch slippage and catastrophic failure under heavy loads. We need a strict technical framework to evaluate these components properly. You must match physical dimensions like diameter to your specific setup. You also need to calculate the required clamp load against your engine's peak torque. Selecting appropriate materials and aligning these specifications with the specific truck application ensures long-term reliability.
Torque Capacity is Non-Negotiable: A clutch cover must provide a clamp load capable of handling at least 10% more torque than the engine's maximum output to prevent slippage during peak loads.
Diameter Dictates Application: Standardizing on specific sizes (e.g., a 380mm clutch cover for medium-duty vs. a 430mm clutch pressure plate for heavy-haul) is dictated by flywheel housing, spline configuration, and gross vehicle weight rating (GVWR).
Material Trade-offs: The choice between steel and aluminum covers requires balancing thermal mass (heat dissipation) against weight reduction and fleet durability requirements.
Holistic Replacement: A successful clutch cover replacement requires mandatory inspection and potential resurfacing of mating components, particularly the flywheel and clutch disc, to ensure proper engagement.

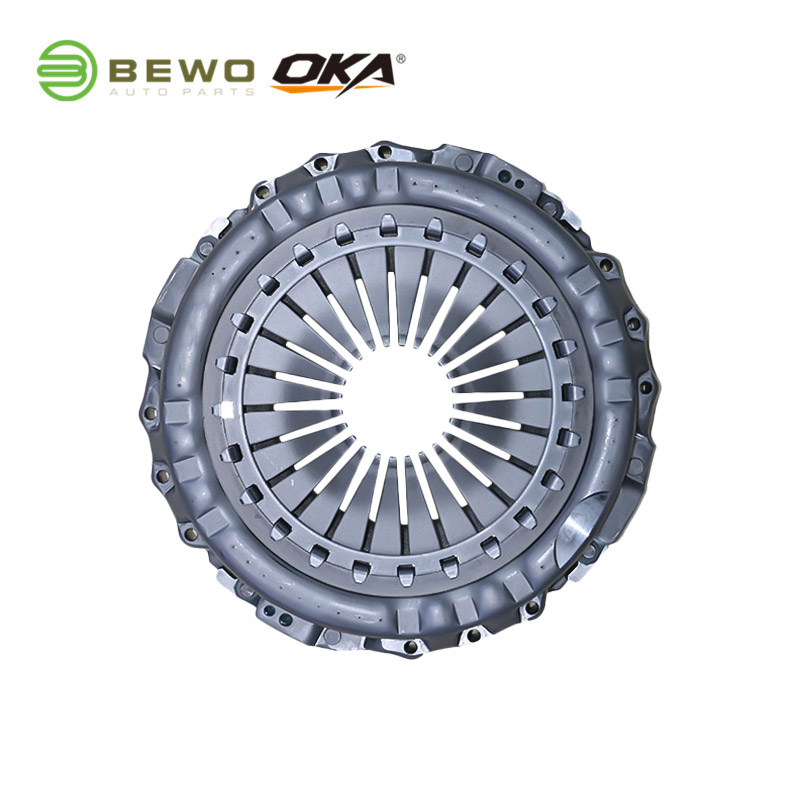

The primary function of the Clutch Cover is to apply and release the clamping force that binds the clutch disc to the flywheel. Mechanics often refer to this component interchangeably as the truck clutch pressure plate. It acts as the mechanical gateway between engine power and transmission movement. When engaged, it locks the drivetrain components together. When disengaged, it interrupts power flow so you can shift gears smoothly. Without a properly functioning cover, the entire driveline suffers from parasitic power loss and erratic engagement.
In a heavy-duty shop, we see the results of poor component selection every day. A cover that lacks the necessary clamping force will allow the disc to slip against the flywheel. This slippage generates massive amounts of heat, which degrades the friction material and warps the metal components. You cannot expect a truck to pull a fully loaded trailer up a steep grade if the mechanical gateway between the engine and the transmission is compromised.
Understanding the internal anatomy helps diagnose drivetrain issues faster. The assembly consists of several core components that must work in perfect harmony. If one piece fails, the entire unit must be replaced.
Component | Material Construction | Primary Function in the Drivetrain |
|---|---|---|
Pressure Ring | High-Carbon Cast Iron or Nodular Iron | Provides the friction surface that mates against the clutch disc. Absorbs extreme thermal shock during engagement. |
Diaphragm Spring | Heat-Treated Spring Steel | Generates the immense clamping force required to hold the assembly together under maximum engine torque. |
Cover Housing | Stamped Steel, Cast Iron, or Aluminum | Contains the moving parts, maintains structural rigidity, and bolts directly to the engine flywheel. |
Release Bearing Assembly | Steel Housing with Sealed Roller Bearings | Interfaces with the clutch fork to push or pull the diaphragm spring, disengaging the clutch. |
These components interact seamlessly to transfer engine torque to the transmission input shaft. As you press the clutch pedal, the release bearing pushes or pulls against the diaphragm spring. This action pivots the spring on its internal fulcrum points, lifting the pressure ring away from the disc. Power transfer stops instantly. Releasing the pedal allows the spring to reassert its clamping force, sandwiching the disc against the flywheel.
Installing an inadequate cover leads to predictable and costly failures. Heat checking on the pressure plate surface is the most common symptom we encounter during teardowns. This appears as a network of fine cracks caused by extreme thermal cycling and prolonged slippage. If ignored, these micro-cracks expand, eventually causing the pressure ring to shatter under load, which can destroy the bell housing.
Weakened diaphragm springs lead directly to pedal fade. The driver will notice a spongy feel and incomplete disengagement, which grinds the transmission gears during shifts. Structural warping occurs when the cover housing cannot withstand the operational heat or torque loads. A warped cover causes severe driveline vibration. This vibration travels down the input shaft, destroying transmission bearings and tearing the friction material off the clutch disc rapidly.
Physical dimensions and mechanical designs strictly limit your component selection. You cannot force a mismatched cover onto a flywheel. You must evaluate diameter, spline count, and actuation type before ordering parts. Attempting to modify a bell housing or flywheel to accept the wrong size compromises the structural integrity of the drivetrain.
Medium-duty trucks and regional delivery vehicles typically utilize a 380mm clutch cover. This size perfectly balances rotational mass with adequate torque capacity for engines with moderate displacement, usually in the 7-liter to 9-liter range. Delivery routes require frequent shifting and stop-and-go driving through urban environments, making pedal feel and engagement speed critical.
The slightly smaller diameter reduces rotational inertia. This allows the engine to rev faster and improves synchronization during frequent gear changes. It provides ample clamping force for gross vehicle weights typically found in Class 6 and Class 7 applications. Using a larger cover in these scenarios adds unnecessary weight and sluggish throttle response without providing any tangible durability benefits. We often install these in box trucks, beverage haulers, and municipal utility vehicles.
Heavy-haul applications and Class 8 trucks demand a 430mm clutch pressure plate. High-torque 13-liter and 15-liter diesel engines generate massive twisting forces that easily overwhelm smaller components. The larger 430mm surface area distributes heat much more effectively under extreme loads.
When pulling 80,000 pounds up a steep grade, the clutch assembly generates intense friction. The extra surface area prevents the friction material from glazing and protects the pressure ring from heat checking. The increased diameter also allows engineers to install heavier, more robust diaphragm springs, generating the massive clamping loads required for line-haul operations. You will find these units bolted behind high-output engines paired with 13-speed or 18-speed manual transmissions.
Matching the cover to your existing hardware requires precise measurements. A visual inspection is never enough. Use this checklist to verify compatibility during teardown:
Measure the flywheel depth with a micrometer to ensure the pressure plate will engage fully without bottoming out on the mounting steps.
Verify the bolt pattern aligns perfectly with the flywheel mounting holes. Even a millimeter of misalignment prevents installation.
Count the transmission input shaft splines to match the clutch disc hub exactly. Common heavy-duty sizes include 1.75-inch 10-spline and 2-inch 14-spline configurations.
Inspect the input shaft for wear grooves. A worn shaft will cause the new disc to hang up, preventing smooth engagement.
Check the pilot bearing diameter to ensure proper input shaft support. Always replace the pilot bearing during a clutch job.
Confirm the bell housing provides adequate clearance for the cover's outer diameter, especially if upgrading to a heavier casting.
You must match the cover design to your transmission's release mechanism. Heavy-duty commercial applications frequently utilize pull-type configurations. In a pull-type system, the release bearing snaps into the diaphragm spring. The clutch fork pulls the bearing away from the flywheel to disengage the clutch. This design allows for higher clamping loads within a compact bell housing space.
Lighter applications and some specific medium-duty transmissions use push-type covers. Here, the release bearing pushes inward on the spring fingers toward the engine block. Installing the wrong actuation type makes assembly impossible. You must verify the fork pivot points, cross-shaft bushings, and bearing retainer style before finalizing your component selection. If the cross-shaft bushings are worn, even the correct cover will feel stiff and engage poorly.
Engineering math drives successful clutch selection. You cannot guess the required clamping force based on how the pedal feels. You must calculate it based on engine output, gear ratios, and vehicle application. Ignoring the math leads to guaranteed driveline failure.
Clamp load is the total force, measured in pounds, that the pressure plate exerts against the clutch disc. The physics are straightforward. Higher clamp load equals higher friction between the mating surfaces. This increased friction directly translates to increased torque capacity.
If your engine produces 1,850 lb-ft of torque, your clutch assembly must generate enough clamping force to hold that twisting motion without slipping. The pressure ring must squeeze the disc against the flywheel hard enough to make all three components spin as a single solid unit under maximum throttle. In lower gears, torque multiplication puts immense strain on this connection. The clutch acts as the mechanical fuse; if the clamp load is insufficient, the fuse blows, and the truck stops moving.
Industry standards dictate a specific formula for safety and reliability. Calculate your engine's peak torque output by reading the manufacturer's data plate on the valve cover. Then, select a unit rated for at least 10% above that figure. This buffer accounts for driveline shock, payload spikes, and uneven terrain.
For example, if your engine peaks at 1,650 lb-ft of torque, you calculate 10% (165 lb-ft) and add it to the base number. You need a clutch rated for at least 1,815 lb-ft. We usually round up to the next available standard size, such as an 1,850 lb-ft or 2,050 lb-ft unit. Ignoring this rule guarantees clutch slippage when pulling heavy loads up steep inclines. Slippage generates immediate heat, which destroys the friction material in a matter of miles.
The pressure plate's clamp load must complement the disc friction material. You cannot mix and match these components blindly.
Friction Material | Required Clamp Load | Engagement Characteristics | Best Application |
|---|---|---|---|
Woven Organic | Low to Moderate | Very smooth, forgiving engagement. Protects driveline from shock. | Medium-duty delivery, light towing, urban routes. |
Ceramic Button | High to Very High | Aggressive, abrupt engagement. Withstands extreme heat. | Heavy-haul, logging, high-torque Class 8 trucks. |
Kevlar Composite | Moderate to High | Smooth engagement with excellent wear resistance. | Specialty vocational, emergency vehicles. |
Ceramic discs handle high-heat and high-torque applications effortlessly. They feature aggressive coefficients of friction. Therefore, they require exceptionally high clamp loads to function correctly. Mismatching a high-clamp cover with an organic disc causes aggressive chatter and tears the organic material apart. Pairing a low-clamp cover with a ceramic disc leads to immediate glazing, where the ceramic buttons polish the pressure ring smooth, resulting in total slippage.
Modern heavy-duty applications often utilize multi-rate springs. These designs offer progressive engagement and superior vibration dampening. As the pedal releases, the clamping force increases exponentially rather than linearly. This smooths out the power delivery and protects the transmission input shaft from sudden shock loads. Drivers prefer multi-rate springs because they reduce leg fatigue in heavy traffic.
Traditional single-rate diaphragm springs offer a more direct, abrupt engagement. They cost less to manufacture and feature fewer moving parts. However, they transfer more driveline vibration into the cab and require precise driver footwork to avoid bucking the truck during low-speed maneuvers. We typically reserve single-rate springs for off-road vocational trucks where smooth engagement takes a back seat to raw clamping power.
The structural material of the cover housing significantly impacts performance, durability, and heat management. You must evaluate the conceptual trade-offs between steel and aluminum based on your fleet's operational reality. Choosing the wrong material compromises the entire installation.
Stamped or cast steel covers dominate vocational and heavy-haul applications. Steel provides superior thermal mass. It absorbs and dissipates extreme heat generated during heavy load engagement without warping. When a driver slips the clutch to maneuver an 80,000-pound rig into a tight loading dock, the friction generates massive temperatures.
Steel maintains its structural integrity under these brutal conditions. It resists heat checking and ensures the diaphragm spring remains perfectly aligned. The rigidity of a heavy steel casting prevents the cover from flexing outward when the release bearing applies pressure. This guarantees full disengagement and protects the transmission synchronizers. If you run dump trucks or loggers, cast steel is your only viable option.
Billet or cast aluminum covers offer distinct advantages for specific applications. The primary benefit is a significant reduction in rotational mass. This improves engine response, allows for faster rev-matching, and slightly reduces overall vehicle weight.
However, this weight reduction comes with a strict trade-off. Aluminum possesses lower thermal mass than steel. It faces a higher risk of heat distortion under prolonged slipping conditions. Aluminum covers work well in weight-sensitive regional delivery applications or highly specialized setups but fail rapidly in heavy vocational use where heat buildup is constant. We rarely install aluminum covers on Class 8 trucks unless the rig is built specifically for weight-restricted highway hauling.
Technical specifications only matter when aligned with real-world fleet operations. You must contextualize your component selection based on how the truck actually works every day. Proper matching ensures a successful clutch cover replacement that lasts for hundreds of thousands of miles.
OTR applications prioritize longevity and driver comfort. These trucks spend most of their time in top gear, cruising on highways with minimal shifting. The clutch sees the most abuse at shipping terminals and truck stops.
Focus on standard clamp loads that handle highway cruising efficiently without overstressing the mechanical linkage.
Select covers that offer manageable pedal effort to reduce driver fatigue during inevitable traffic jams.
Prioritize dampened ceramic friction materials for a balance of smooth engagement and long-term durability.
Ensure the release bearing features extended lubrication intervals for long-haul reliability.
Verify the cross-shaft bushings are tight to maintain a smooth pedal stroke over high mileage.
Vocational trucks operate in brutal environments. Dump trucks, logging rigs, and heavy-haulers face constant stop-and-go driving under maximum payload on uneven terrain. The clutch takes a beating every single day.
Specify the highest available clamp load to prevent slippage in mud or on steep gravel grades.
Demand cast steel covers for maximum thermal mass and heat dissipation during low-speed maneuvering.
Pair the cover with rigid ceramic clutch discs to withstand extreme friction temperatures.
Accept heavier pedal effort as a necessary trade-off for indestructible clamping force.
Schedule frequent inspections of the linkage and release mechanism due to harsh operating conditions.
Always check the flywheel for heat checking during routine maintenance intervals.
Proper clutch selection dictates the reliability of your entire commercial drivetrain. Follow these actionable steps to ensure maximum uptime and protect your transmission from catastrophic failure:
Calculate your engine's peak torque and strictly apply the 10% over-torque rule when selecting a new cover.
Measure your flywheel depth and verify input shaft spline counts before ordering any replacement components.
Choose heavy cast steel covers for heavy-haul and vocational applications to maximize thermal mass and prevent heat distortion.
Inspect the flywheel surface for heat checking or warping, and resurface it immediately if any defects are found.
Match the friction material of your clutch disc directly to the clamping force profile of your chosen pressure plate.
A: Inspect the release bearing mechanism on your transmission. If the release fork pulls the bearing away from the engine to disengage, you need a pull-type cover. If it pushes the bearing toward the engine, specify a push-type cover. Consult your transmission service manual for exact specifications before ordering.
A: No. The flywheel bolt pattern, bell housing clearance, and torque capacity requirements prevent this swap. A 380mm unit cannot handle the torque loads designed for a 430mm system. Always replace the cover with the exact diameter specified by the vehicle manufacturer to ensure safety.
A: Heat checking results from extreme thermal cycling and prolonged clutch slippage. When a driver rides the pedal or attempts to start on a steep grade in a high gear, friction generates massive heat. The metal expands and contracts rapidly, creating a network of fine surface cracks.
A: A stiff pedal usually indicates a binding release bearing, worn mechanical linkage, or a failing diaphragm spring inside the cover. In some cases, extreme heat can warp the internal components, altering the leverage ratio. Inspect the external mechanical linkage first before dropping the transmission.
A: Yes. Mating a new perfectly flat pressure plate to an uneven, glazed, or heat-checked flywheel guarantees poor engagement and premature failure. Resurfacing restores the proper friction profile and ensures the new assembly achieves its maximum rated clamp load immediately upon installation.
