A clutch release bearing is a key component that allows heavy-duty trucks to shift gears smoothly by controlling the connection between the engine and transmission. However, because it operates under continuous pressure, rotation, and vibration, the release bearing may gradually develop problems such as abnormal noise, excessive wear, or incomplete clutch disengagement.
For truck repair technicians, fleet managers, and spare parts distributors, identifying these issues at an early stage can help prevent unexpected downtime and reduce unnecessary repair costs. Benwo Clutch provides reliable clutch components for commercial vehicles, helping customers maintain stable clutch performance in demanding operating environments.
Heavy-duty trucks place much greater stress on clutch systems compared with passenger vehicles. Long-distance transportation, heavy cargo, frequent gear changes, and repeated clutch engagement all increase the workload placed on the release bearing.
During normal operation, the release bearing moves forward and backward every time the driver presses the clutch pedal. At the same time, it must apply pressure against the rotating diaphragm spring inside the pressure plate assembly. This means the bearing must handle both repeated axial movement and continuous contact with rotating components.
For commercial trucks that operate every day, this process happens thousands of times throughout the vehicle’s working life. If the release bearing does not have sufficient load capacity or wear resistance, internal components may gradually deteriorate, resulting in reduced clutch performance.
This is why selecting suitable heavy-duty truck clutch components is important for maintaining reliable operation.
Compared with ordinary passenger vehicle applications, heavy truck clutch systems require components that can withstand higher torque levels, stronger vibration, and longer operating cycles.
The table below shows how working conditions influence release bearing requirements.
Operating Condition | Effect on Clutch Release Bearing |
Heavy cargo transportation | Creates higher mechanical pressure on clutch components |
Frequent gear shifting | Increases bearing operating cycles |
Long-distance driving | Requires stable performance over extended periods |
Harsh road conditions | Increases vibration and contamination risks |
For fleet operators, a failed release bearing can interrupt vehicle operation and affect transportation schedules. Therefore, choosing a properly designed heavy truck release bearing is an important part of reducing maintenance problems.
Although clutch release bearings are designed for durability, poor maintenance practices and incorrect installation are common reasons for premature failure.
A clutch system operates in a challenging environment where dust, moisture, and contaminants may enter mechanical areas over time. When these particles affect the bearing’s internal structure, friction increases and the bearing may lose its ability to operate smoothly.
Incorrect installation can create similar problems. If the release bearing is not aligned correctly or if related clutch components are already worn, the bearing may experience uneven loading during operation. This additional stress can accelerate wear and shorten service life.
Another common mistake is replacing only the damaged bearing while ignoring the condition of the surrounding clutch components. Since the release bearing works together with the clutch fork, pressure plate, and clutch disc, these parts should be inspected together during maintenance.
A complete clutch system inspection helps ensure that the replacement component can achieve its expected service life.
Abnormal noise is one of the earliest warning signs of clutch release bearing problems. Many drivers notice a whining, grinding, or squealing sound when pressing the clutch pedal.
A typical situation is that the noise becomes noticeable when the clutch pedal is pressed and reduces after the pedal is released. This happens because pressing the pedal activates the release system and places the bearing under working load.
When internal bearing components become worn, lubrication becomes insufficient, or excessive friction develops, the bearing may produce noticeable operating noise. In some cases, continued operation under these conditions may lead to more serious clutch system damage.
However, noise alone does not always confirm that the release bearing is the only failed component. The clutch fork, pressure plate, and other related parts may also create similar symptoms. Professional inspection is therefore necessary before replacing components.
Wear is a natural process for any mechanical component, but excessive wear can significantly reduce clutch performance. In heavy-duty trucks, release bearings are exposed to repeated pressure and rotation, making proper material selection and manufacturing quality especially important.
Insufficient lubrication is one factor that can increase friction inside the bearing. Damaged sealing structures may allow contaminants to enter, while excessive axial load can accelerate internal component deterioration.
When overheating and wear continue, drivers may experience changes in clutch operation, including increased pedal resistance, vibration, or inconsistent engagement.
The following table summarizes common causes and their effects.
Problem Source | Possible Effect on Release Bearing |
Insufficient lubrication | Increased friction and operating temperature |
Contamination inside bearing | Accelerated internal wear |
Excessive operating load | Reduced service life |
Incorrect installation | Uneven pressure and abnormal wear |
For repair workshops and distributors, replacing worn components with reliable truck clutch repair parts can help improve vehicle reliability and reduce repeated maintenance.
Incomplete clutch disengagement occurs when the clutch disc does not fully separate from the flywheel after the clutch pedal is pressed. This condition can make gear shifting difficult and may create additional stress on the transmission system.
Drivers may notice that gears are harder to select, grinding occurs during shifting, or the vehicle continues to move slightly even when the clutch pedal is fully depressed.
Although a damaged release bearing can contribute to this issue, technicians should not assume that the bearing is always the only cause. Problems with the clutch fork, hydraulic release system, pressure plate, or clutch adjustment can create similar symptoms.
A proper diagnosis should evaluate the entire clutch release system rather than focusing on a single component.
Symptom | Possible Cause | Recommended Inspection |
Noise when pressing pedal | Release bearing wear | Check bearing rotation and condition |
Difficult gear shifting | Incomplete clutch release | Inspect clutch travel |
Vibration during operation | Bearing or fork problems | Examine clutch mechanism |
Clutch drag | Incorrect adjustment or component wear | Check clutch clearance |
The first step in diagnosing a possible release bearing problem is understanding when the abnormal sound occurs.
Technicians should compare the clutch system’s behavior when the pedal is released, partially pressed, and fully pressed. If the noise appears mainly during clutch engagement, the release bearing becomes one of the main components requiring inspection.
This method helps distinguish release bearing problems from other potential sources, such as transmission noise or pressure plate issues.
A release bearing should always be inspected together with the surrounding clutch components. Replacing a bearing without checking the entire system may result in repeated failures.
During inspection, technicians should evaluate the condition of the release bearing, clutch fork movement, pressure plate operation, and clutch disc wear. Any misalignment or excessive wear in these components may affect the performance of the new bearing.
For this reason, professional replacement procedures usually involve checking the complete clutch assembly rather than replacing only one part.
Choosing the correct replacement bearing is essential for achieving reliable clutch performance. Different truck models may use different bearing dimensions, mounting structures, and operating requirements. Before replacement, buyers and technicians should confirm compatibility based on vehicle information, OEM specifications, and the working conditions of the truck.
Benwo Clutch provides replacement solutions for different commercial vehicle applications, including heavy truck release bearing products designed to meet demanding operating conditions. For example, when servicing Mercedes-Benz heavy-duty trucks, selecting a release bearing that matches the original clutch system specifications helps ensure proper installation, smooth operation, and long-term durability.

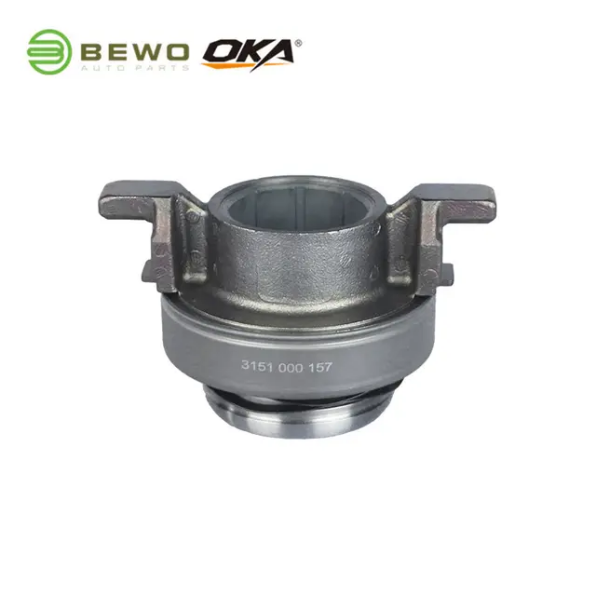

One commonly used replacement solution is the Mercedes-Benz Clutch Release Bearing, which is designed for commercial vehicle clutch applications where accurate fitment and reliable disengagement performance are required.
Selecting the correct OEM replacement part helps avoid installation problems, reduces unnecessary maintenance costs, and improves overall clutch system reliability.
Using the correct replacement component is one of the most effective ways to prevent premature release bearing failure.
A suitable release bearing should match the vehicle application, clutch design, and operating conditions. Using an incorrect or low-quality replacement part may lead to poor clutch performance and additional repair costs.
For wholesalers, distributors, and repair workshops, reliable clutch bearing replacement solutions help ensure better customer satisfaction and reduce after-sales problems.
Regular maintenance is essential for extending the service life of clutch components. Early inspection can identify potential issues before they develop into major failures.
Technicians should pay attention to changes in clutch pedal feel, unusual operating noise, and shifting performance. Keeping the clutch system properly adjusted and preventing contamination can significantly improve component durability.
For heavy-duty trucks operating under demanding conditions, preventive maintenance is often more cost-effective than dealing with unexpected clutch failure.
Clutch release bearing problems such as noise, wear, and incomplete disengagement are common concerns in heavy-duty trucks because these vehicles operate under high loads and frequent clutch cycles. Understanding the causes and symptoms of release bearing failure allows technicians and fleet operators to make better maintenance decisions.
With professional manufacturing experience and a focus on commercial vehicle applications, Benwo Clutch provides reliable clutch components designed to improve vehicle reliability and reduce maintenance challenges.
The most common problems include abnormal noise, bearing wear, overheating, vibration, and incomplete clutch disengagement.
Noise when pressing the clutch pedal is often related to release bearing wear because the bearing becomes loaded during clutch disengagement.
Yes. A damaged release bearing may increase stress on the clutch fork, pressure plate, and other clutch components if the problem is not repaired in time.
Using the correct replacement part, following proper installation procedures, and performing regular clutch system inspections can help extend bearing service life.
