SCANIA Clutch Fork OKA-10.114 – OE Replacement for 4 Series, P/G/R/T Series Trucks & Buses

Product Overview

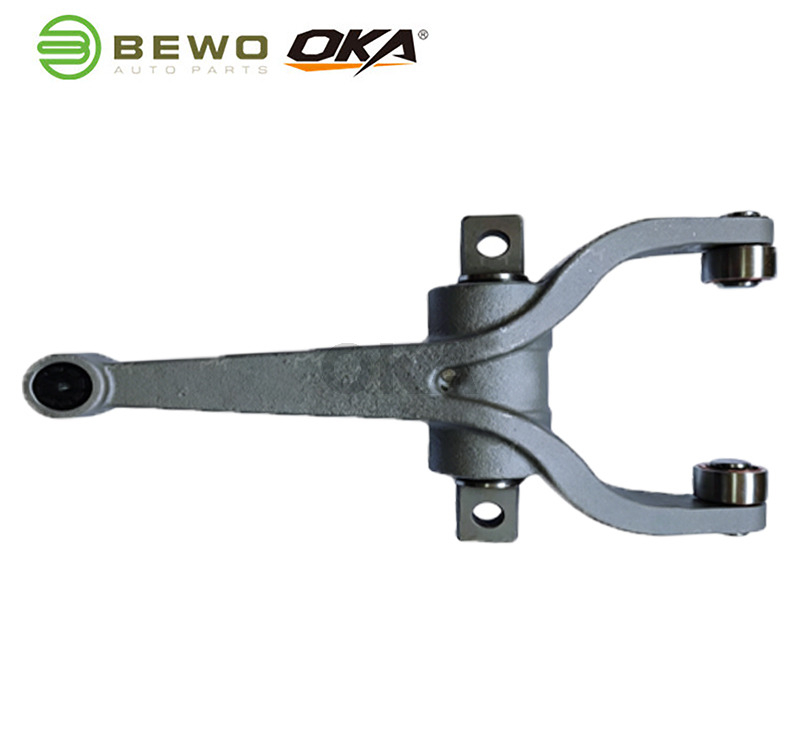

Clutch Fork – OKA-10.114 (SCANIA)

The BEWO Clutch Fork (OKA-10.114) is a precision-engineered release fork designed specifically for SCANIA heavy-duty trucks and buses. It serves as a critical component in the clutch release system, transferring motion from the clutch release bearing to the pressure plate diaphragm spring.

OE Cross Reference:
1479577, 1737306, 1543645, 1545625

Vehicle Fitment:

• SCANIA 4 Series Truck & Bus (1994 onward)

• SCANIA F, K, N Series Bus (2004 onward)

• SCANIA P, G, R, T Series Truck (2003 onward)

Key Features:

• Manufactured from high-strength forged steel with heat treatment for enhanced durability

• Precision-machined contact surfaces ensure smooth actuation and even load distribution

• Direct OE replacement – no modifications required

• Excellent wear and impact resistance for long-haul and heavy-duty applications

• Corrosion-resistant surface treatment extends service life

Quality Assurance:
Each clutch fork undergoes rigorous dimensional inspection and 100% quality control to ensure perfect fitment and reliable performance.

BEWO offers OEM customization including logo stamping and private-label packaging. Contact us for bulk orders or technical support.

USAGE

Usage Instructions:

The clutch fork is a transmission component in the clutch release system, mounted on the side of the transmission housing. One end connects to the clutch release bearing, the other to the pushrod of the clutch master cylinder or slave cylinder (or cable). When the clutch pedal is depressed, the fork pivots on its ball stud, pushing the release bearing forward against the pressure plate diaphragm spring, thereby disengaging the clutch.

Installation Notes:

1. Clean the fork pivot and contact surfaces before installation. Apply high-temperature grease to the pivot point.

2. Ensure proper alignment between the fork, release bearing, and pressure plate spring fingers to avoid uneven wear.

3. When replacing a clutch kit, simultaneously inspect the fork and pivot pin for wear or distortion. Replace if any significant wear or damage is found.

4. After installation, verify complete clutch disengagement and smooth engagement.

Application:

• Suitable for clutch repair and maintenance on SCANIA 4 Series, P/G/R/T Series trucks and buses

• Ideal for OE replacement and aftermarket bulk procurement
