Don't Throw Away That Old Clutch Just Yet

At repair shops, what usually happens to an old clutch after replacement? It gets tossed in the trash, or piled up and sold as scrap metal. A few hundred pounds of iron doesn't fetch much.

But you might not realize that the old clutch you threw away actually holds a lot of information. It tells you how the truck was driven, where the problem came from, and what to watch out for next time.

Look at the friction disc to understand driving habits

When you take out the old clutch disc, first check how much friction material is left.

If it's worn evenly, that means engagement was smooth and the driver operated normally. If it's worn unevenly—thick on one side, thin on the other—that indicates uneven pressure plate force or misalignment during installation. If it's burned black or blue, with a hardened surface, that means long periods of half-clutch or frequent heavy-load starts, and the clutch overheated.

If the friction material has worn down to the rivets, with rivet heads exposed, that means the driver kept pushing it and it should have been replaced long ago.

Look at the pressure plate to find where the problem lies

If the pressure plate surface is blue or has cracks, it has experienced high temperatures. Blue discoloration is a sign of heat fade; cracks are the result of thermal fatigue. This kind of pressure plate usually goes hand in hand with long-term overloading or half-clutch operation.

If the pressure plate surface has grooves—you can feel them as rings—that means the clutch disc has worn down to the metal, leaving marks from metal-to-metal friction.

If the release fingers of the diaphragm spring are uneven in height, or dark and annealed, the spring is fatigued. Even if the working surface looks okay, the clamping force is no longer sufficient, and it will still shudder when installed.

Look at the spline and bearing to assess assembly quality

If the spline is severely worn, with steps on the tooth surfaces, that means the clutch disc was loose on the transmission input shaft. It could be poor spline precision, or it was forced on during installation without proper alignment.

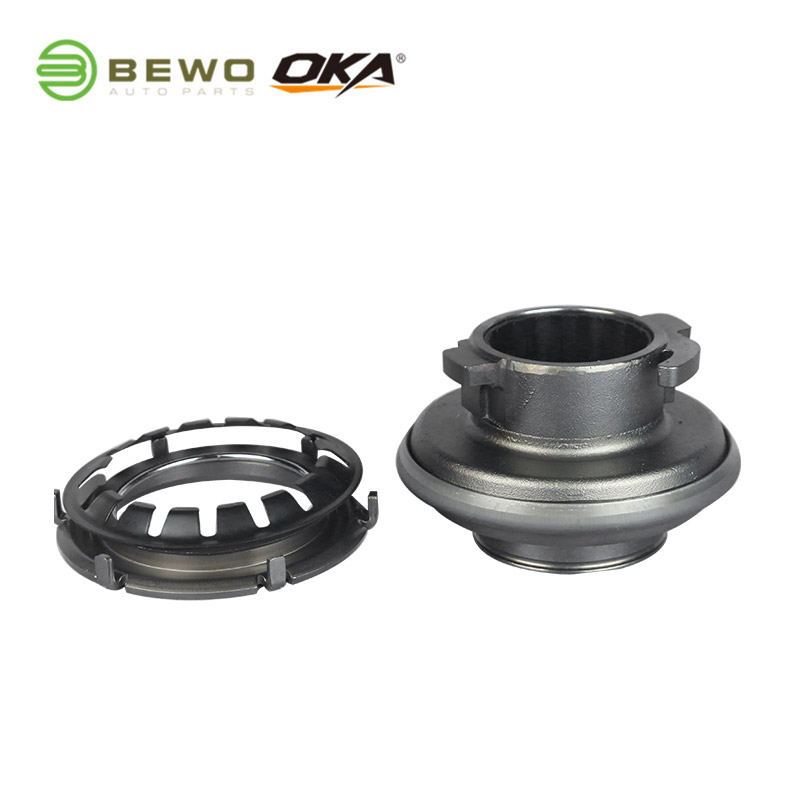

If the release bearing feels rough when turned or makes noise, and upon disassembly the grease is dried out or discolored, that means high temperatures cooked the grease. After dry grinding, the bearing clearance increases, release becomes incomplete, and shifting grinds.

BEWO's habit of analyzing old parts

When handling customer feedback, BEWO's technical team often asks customers to send photos of the old parts. Not to assign blame, but to determine where the problem came from by examining the old part.

If it's a product issue, we replace or compensate. If it's an installation or usage issue, we help the customer understand it clearly so it doesn't happen again.

This habit has helped many wholesalers and repair shops resolve after-sales disputes—a photo of the old part is more effective than hours of arguing.

Next time you replace a clutch, don't throw the old one away just yet.

Take a few photos and look at the condition of the friction disc, pressure plate, and bearing. You might spot problems you normally wouldn't notice. If you're not sure, send them to BEWO's technical team, and we'll take a look for you.
